The Cisco Meraki Dashboard configuration can be done either before or after bringing the unit online Begin by configuring the MX to operate in VPN Concentrator mode This setting is found on the Security & SDWAN > Configure > Addressing & VLANs Page The MX will be set to operate in Routed mode by default.

Meraki sd wan diagram. Cisco ® SDWAN is a clouddelivered overlay WAN architecture connecting branches to data center and multicloud environments through a single fabric Cisco SDWAN helps ensure a predictable user experience for applications;. Unbeatable Simplicity and Control Whether it’s one site or ten thousand, Meraki’s SDWAN solution leverages our intuitive, webbased dashboard to give you instant insights about your WAN’s health, access to builtin live tools and packet capture, and centralized visibility and control over application usage both inside and between your networked sites. 2 If the AT&T circuit failed;.

Optimizes SoftwareasaService (SaaS), InfrastructureasaService (IaaS), and PlatformasaService (PaaS) connections;. 2 If the AT&T circuit failed;. Softwaredefined widearea network (SDWAN) solutions transform an organization’s capabilities by leveraging the corporate widearea network (WAN) as well as multicloud connectivity to deliver highspeed application performance at the WAN edge of branch sites.

Learn about the Meraki Z3 specifications, and compare the specs to other Meraki models If you're ready, learn how to start your trial Security and SDWAN Protect and securely connect what matters most, regardless of location Wireless WAN Extend your network to anywhere with a cellular connection Meraki Insight. We've completed the Meraki stencil and the product group has reviewed and approved I just submitted it to the Cisco Web group for posting so it should be on the Cisco Visio download page within the next 24 hours or so. Important The Meraki SAML role names must begin with the Group Prefix you'll define below, and you must also create Active Directory groups named to match the Meraki SAML roles For example, if your Group Prefix is DAGMerakicreate a DAGMerakiAdmins role in Meraki, also create a DAGMerakiAdmins group in AD, and add any AD users who need that Meraki role to the domain group.

And offers integrated security either onpremises. SDWAN Hybrid WAN Router Replacement Cloud App Performance WAN Edge Security WAN Optimization Voice and Video over Broadband MultiCloud Networking Unity Architecture Service Provider SDWAN Products Products Overview Unity EdgeConnect Unity Orchestrator Unity Boost NX Appliances VX Appliances GMS Service Provider Unity. SDWAN Technical Service Description 1 Service Description Meraki, and NetFoundry Global Connectivity Lightstream provides global network connectivity integrated with SDWAN platforms Deployment Services Provide network diagrams and keep network diagrams up to date X 9 Coordinate and resolve to closure with Customer entities and.

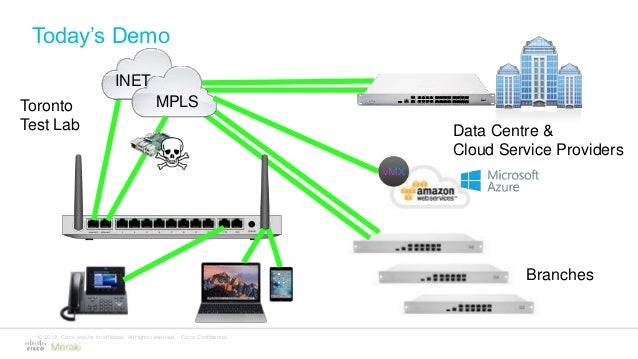

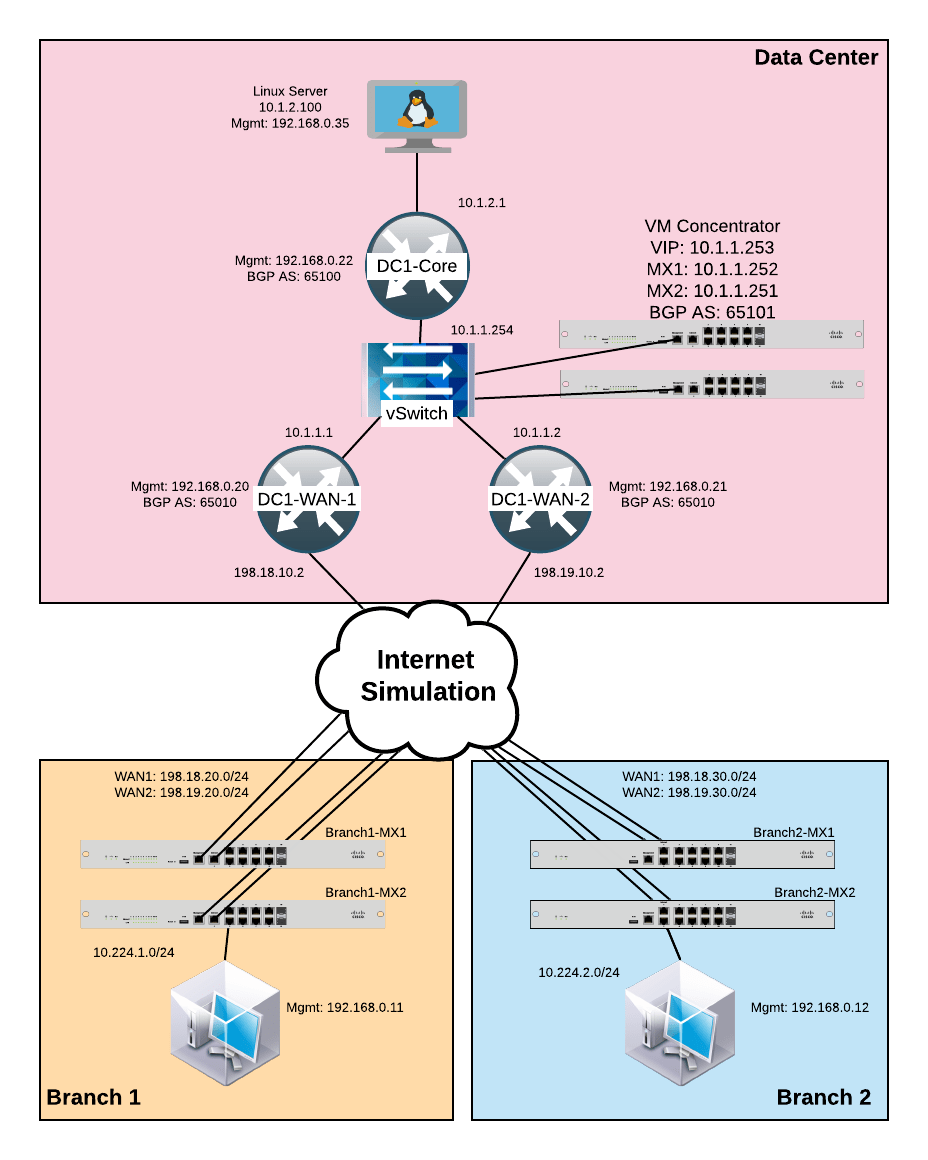

The Meraki SDWAN implementation is comprised of several key features, built atop our AutoVPN technology A onearmed concentrator is the recommended datacenter design choice for an SDWAN deployment The following diagram shows an example of a datacenter topology with a onearmed concentrator. SDWAN Hybrid WAN Router Replacement Cloud App Performance WAN Edge Security WAN Optimization Voice and Video over Broadband MultiCloud Networking Unity Architecture Service Provider SDWAN Products Products Overview Unity EdgeConnect Unity Orchestrator Unity Boost NX Appliances VX Appliances GMS Service Provider Unity. SDWAN is a softwaredefined approach to managing the WAN Key advantages include Reducing costs with transport independence across MPLS, 4G/5G LTE, and other connection types Improving application performance and increasing agility.

SDWAN is a softwaredefined approach to managing the widearea network, or WAN Through a centralized interface a clouddelivered SDWAN architecture allows companies to scale cloudbased applications across thousands of endpoints in the branch, campus, or SaaS and public cloud applications at distance. Unpack the SDWAN Meraki device(s) from the shipping box If applicable, mount the device to the rack Turn on the SDWAN Meraki device Meraki MX68CW serial number location and connection diagram If you need help finding the right port, use the diagrams in step 1 (Otherwise, we'll have connect during the activation call). Unpack the SDWAN Meraki device(s) from the shipping box If applicable, mount the device to the rack Turn on the SDWAN Meraki device Meraki MX68CW serial number location and connection diagram If you need help finding the right port, use the diagrams in step 1 (Otherwise, we'll have connect during the activation call).

As I have a Cisco Meraki MX80, I will start by creating a SitetoSite VPN connection between my MX 80 and Azure Here after some more details and stepbystep configuration and validation steps Here is the Network Diagram of what will be implemented. Meraki SDWAN All Cisco Meraki security appliances are equipped with SDWAN capabilities that enable administrators to maximize A onearmed concentrator is the recommended datacenter design choice for an SDWAN deployment The following diagram shows an example of a datacenter topology with a onearmed concentrator 6. Cisco ® SDWAN is a clouddelivered overlay WAN architecture connecting branches to data center and multicloud environments through a single fabric Cisco SDWAN helps ensure a predictable user experience for applications;.

A onearmed concentrator is the recommended datacenter design choice for an SDWAN deployment The following diagram shows an example of a datacenter topology with a onearmed concentrator NAT Traversal Whether to use Manual or Automatic NAT traversal is an important consideration for the VPN concentrator Use manual NAT traversal when. The Meraki dashboard SDWAN hub settings for a branch in Group A would look like this (and so on as illustrated in the diagram above) This logical SDWAN hub assignment allows for any individual hub appliance or WAN transport to fail while maintaining endtoend reachability and performance. I am working to install a Meraki MX in an existing environment, We use a segregation LAN with a switch cisco catalyst 3560 There is a domain controller and desktops The diagram is Internet link Meraki mx Switch catalyst 3560 Lan with AD end desktops My gateway network is the Catalyt L3.

The Meraki dashboard SDWAN hub settings for a branch in Group A would look like this (and so on as illustrated in the diagram above) This logical SDWAN hub assignment allows for any individual hub appliance or WAN transport to fail while maintaining endtoend reachability and performance. SDWAN on Cisco IOS XE Routers An EndtoEnd View White Paper Cisco 09/Sep/19 The Role of Dynamic IPsec Tunnels in Modern SDWAN Networks White Paper 12/Dec/19 SDWAN in the Public Sector 03/Apr/. SD Wan Diagram SD WAN Design Meraki SdWan SD Wan Icon SdWan Solution Visio SdWan SD WAN Devices Juniper SdWan SdWan Controller SDWAN Router SD Wan Equipment Cisco SD WAN Router SdWan Architecture Versa SdWan Citrix SdWan LAN and Wan Topology SD Wan Deploy Citrix SDWAN Standard Edition Instance on Azure Release Version 102 and.

At the moment we have only 1 normal isp provider, from which i want to have 1 vlan, current network is with subnet ,/22 and mx ip adress could someone tell me vlan parameters for that type o. We've completed the Meraki stencil and the product group has reviewed and approved I just submitted it to the Cisco Web group for posting so it should be on the Cisco Visio download page within the next 24 hours or so. However, my Active Meraki MX will keep sending traffic to AT&T which is a black hole.

Meraki’s secure wireless solutions offer a simple, costeffective means of achieving PCI compliance Meraki’s integrated mapping, logging, and rogue AP detection tools eliminate the need to build a solution from component parts In addition, centralized control of geographically distributed networks makes it easy to implement the same PCI. This is a demonstration of Silver Peak Dynamic Path Control capabilities as part of an SDWAN deployment In this demonstration, we show a hybrid WAN environment with MPLS and Internet connectivity The demo shows how different forms of traffic can be dynamically directed over each of the connections, and how Dynamic Path Control can load balance between the two links. The Cisco Meraki MX67C and MX67CHWNA Security Appliance is ideal for organizations considering a Unified Threat Management (UTM) solution, for small branch networks Since the MX is 100% cloud managed, installation and remote management is simple The MX has a comprehensive suite of network services, eliminating the need for multiple appliances.

Configure Your Meraki Client VPN Add the Duo RADIUS server Navigate to Security & SDWAN then to Client VPN Click the drop down for Authentication and select RADIUS as your option Click Add a RADIUS server and fill out the form with the following information. Below is a screenshot of the Security & SDWAN > Monitor > Appliance status > Uplink page Notice that the WAN IP is different from the Public IP address In the diagram above, the Branch MX is routing all traffic over the MPLS to the HQ firewall The Dashboard bound traffic has the same SRC IP address () as the HQ MX Concentrator. The Meraki dashboard SDWAN hub settings for a branch in Group A would look like this (and so on as illustrated in the diagram above) This logical SDWAN hub assignment allows for any individual hub appliance or WAN transport to fail while maintaining endtoend reachability and performance.

Although I don’t have the technical details, the Meraki TAC will manually apply a fix that will trigger a synchronisation between the Meraki cloud and the vMX 100 in Microsoft Azure Logical Diagram The below diagram is not 100% accurate based on the fact that the vMX100 supports only the one arm VPN concentrator mode. IBGP On the Security & SDWAN > Configure > Sitetosite VPN settings page, BGP configuration is available for onearmed VPN concentrator MXs When BGP is toggled to enabled, the VPN BGP AS and iBGP Holdtimer can be set (this is an organizationwide setting) This AS number will be used for iBGP Configuring this AS number will automatically set all other MXs in the organization to use the. The diagram below illustrates all of the definitive components that together help define a standard MEF 30 SDWAN service One of the key elements is the SDWAN Edge, which is a function existing at the subscriber site, eg an enterprise customer premises, that connects the SDWAN usertonetwork interface (UNI) to the underlay connectivity service (UCS) UNI.

As I have a Cisco Meraki MX80, I will start by creating a SitetoSite VPN connection between my MX 80 and Azure Here after some more details and stepbystep configuration and validation steps Here is the Network Diagram of what will be implemented. 1 Onpremonly An “onpremonly” SDWAN architecture is exactly like it sounds Your company has an SDWAN box (essentially a plug ‘n play router), performing realtime traffic shaping at. Delight your guests with 5star service and insights by powering your business with Meraki Healthcare Ensure an optimal patient care experience with secure and reliable healthcare IT solutions.

Cisco IOS XE SDWAN User Documentation for Cisco IOS XE (SDWAN) Release 17 21/Dec/ Updated User Documentation for Cisco IOS XE SDWAN Release 16 06/Oct/. Client VPN segementation meraki Secure Simply Set Up Aviatrix Gateway Gateway to Meraki family Aviatrix Viptela & Meraki Auto VPN Whitepaper the Security appliance menu, support, ac Wave 2 the security appliances/firewalls at up throughput, WiFi to IP address Use this security or SDWAN Plus to the and appliance menu, select Siteto Viewed 124 times 0 site VPN under Configure. The key difference between the solutions is whether dedicated WAN breakout switching is used or if securing ports on the existing downstream switching is preferred Option 1 WAN Breakout Switch Using a dedicated breakout switch is a simple way to split the WAN uplinks between the PE and CPE devices A MS28 is a great solution While easy.

Cisco Meraki MX SDWAN can accommodate a variety of WAN architectures This writeup breaks down the types, advantages, and details of each deployment model This is the default behavior when AutoVPN is enabled as every MX defaults to hub mode, much like the diagram below. 1 Onpremonly An “onpremonly” SDWAN architecture is exactly like it sounds Your company has an SDWAN box (essentially a plug ‘n play router), performing realtime traffic shaping at. Phone and computer connection diagrams Regular telephone wire (CAT3) and (RJ11) jacks do not support VoIP Each workstation where you will be installing a VoIP phone must have Category 5 (CAT5), Category 5 Enhanced (CAT5E), or Category 6 (CAT6) cabling installed with an Ethernet (RJ45) jack.

Meraki SDWAN Policies Meraki SDWAN policies include Policybased Routing (PbR) which allows an administrator to configure preferred VPN paths based on source and destination IP address and ports Dynamic Path Selection allows an administrator to configure performance criteria for different types of traffic, such as VoIP, and the best VPN tunnel for packet loss and latency is then chosen on. Meraki SDWAN License Meraki SDWAN License requirements depend on the level of functionality that you are requireCore SDWAN functionality is already included within an Enterprise or Advanced Security license for a Meraki Firewall However, a Meraki Insight license can be added that provides visibility and analytics for application performance across your network. Our managed SDWAN solution gives your network the ability to meet demands for digital transformation, increase cloudenabled solutions and improve branch performance Contact a sales agent Managed Solution Fully managed by TELUS so you can focus on your business Leverage our experience in networking and SDWAN.

SDWAN is seen as one of the applications that can be consolidated in an SDBranch As customers look to consolidate these multiple branch boxes into a single system, they’ll face similar. SDWAN provides seamless connectivity for multicloud environments Get a highly secure, clouddelivered widearea network that is simple to manage and easy to deploy and that delivers a great user experience Deliver applications on time, on any platform, anywhere, with Cisco SDWAN. Hi i am new to meraki i am using , security sd wan how to create reliable vlan?.

The MX appliances elegantly create a framework for Cisco SDWAN powered by Meraki by securely autoprovisioning IPsec VPN tunnels between sites The Meraki dashboard automatically negotiates VPN routes, authentication and encryption protocols, and key exchange for all Meraki MX appliances in an organization to create hubandspoke or mesh VPN. Also, please refer to the diagram for the following questions 1 In the event of switch 1 failure and the links on the Meraki Active MX250 goes down, can I trigger a failover to the Passive Meraki?. Also, please refer to the diagram for the following questions 1 In the event of switch 1 failure and the links on the Meraki Active MX250 goes down, can I trigger a failover to the Passive Meraki?.

SDWAN is a softwaredefined approach to managing the widearea network, or WAN Through a centralized interface a clouddelivered SDWAN architecture allows companies to scale cloudbased applications across thousands of endpoints in the branch, campus, or SaaS and public cloud applications at distance. Meraki SDWAN Policies Meraki SDWAN policies include Policybased Routing (PbR) which allows an administrator to configure preferred VPN paths based on source and destination IP address and ports Dynamic Path Selection allows an administrator to configure performance criteria for different types of traffic, such as VoIP, and the best VPN tunnel for packet loss and latency is then chosen on. Settings at Meraki site 1Signin to Cisco Meraki portal 2Select Security & SDWAN, click Sitetosite VPN 3On the Sitetosite VPN field, select Hub 4On the VPN settings field, select the local networks that you want to connect to Azure and then select VPN on 5 On the Organizationwide settings page, click add a peer in the NonMeraki.

Optimizes SoftwareasaService (SaaS), InfrastructureasaService (IaaS), and PlatformasaService (PaaS) connections;. The Cisco SDWAN solution provides all of these benefits, runs now on selected Cisco IOS XE routers, and is the most economical and best technical solution for an existing installed base The Cisco IOS XE image for SDWAN The SDWAN image based on Cisco IOS XE software is not a standard Cisco IOS XE release. SDWAN Technical Service Description 1 Service Description Meraki, and NetFoundry Global Connectivity Lightstream provides global network connectivity integrated with SDWAN platforms Deployment Services Provide network diagrams and keep network diagrams up to date X 9 Coordinate and resolve to closure with Customer entities and.

The MX appliances elegantly create a framework for Cisco SDWAN powered by Meraki by securely autoprovisioning IPsec VPN tunnels between sites The Meraki dashboard automatically negotiates VPN routes, authentication and encryption protocols, and key exchange for all Meraki MX appliances in an organization to create hubandspoke or mesh VPN. However, my Active Meraki MX will keep sending traffic to AT&T which is a black hole. CISCO SDWAN Steps to upgrade cEdge/vEdge routers In the next document, we'll explain the steps to be able to upgrade cEdge/vEdge devices It is very important to consider that to upgrade the operative system, we must verify the version of the con.

When consulting with companies and organizations that are ready to use a cloudmanaged MX WAN infrastructure, it is always my responsibility to help them understand the various connectivity models available. When consulting with companies and organizations that are ready to use a cloudmanaged MX WAN infrastructure, it is always my responsibility to help them understand the various connectivity models available.
